IoT Smart DC Electronic Load
APP-connected smart load with dual-MOS design and Kelvin sensing.
Key Features
- Dual-MOS design with balanced current sharing for longer life and higher stability
- Stable 150 W discharge from 0-150 V; optional 150 W cascade module extends to 300 W
- Hardware reverse-connection protection prevents accidental damage
- Smart temperature-controlled cooling: full-speed fan above 75 W / 10 A, adaptive below
- External temperature probe support for monitoring the device under test
- 4-wire (Kelvin) sensing terminals eliminate lead voltage drop

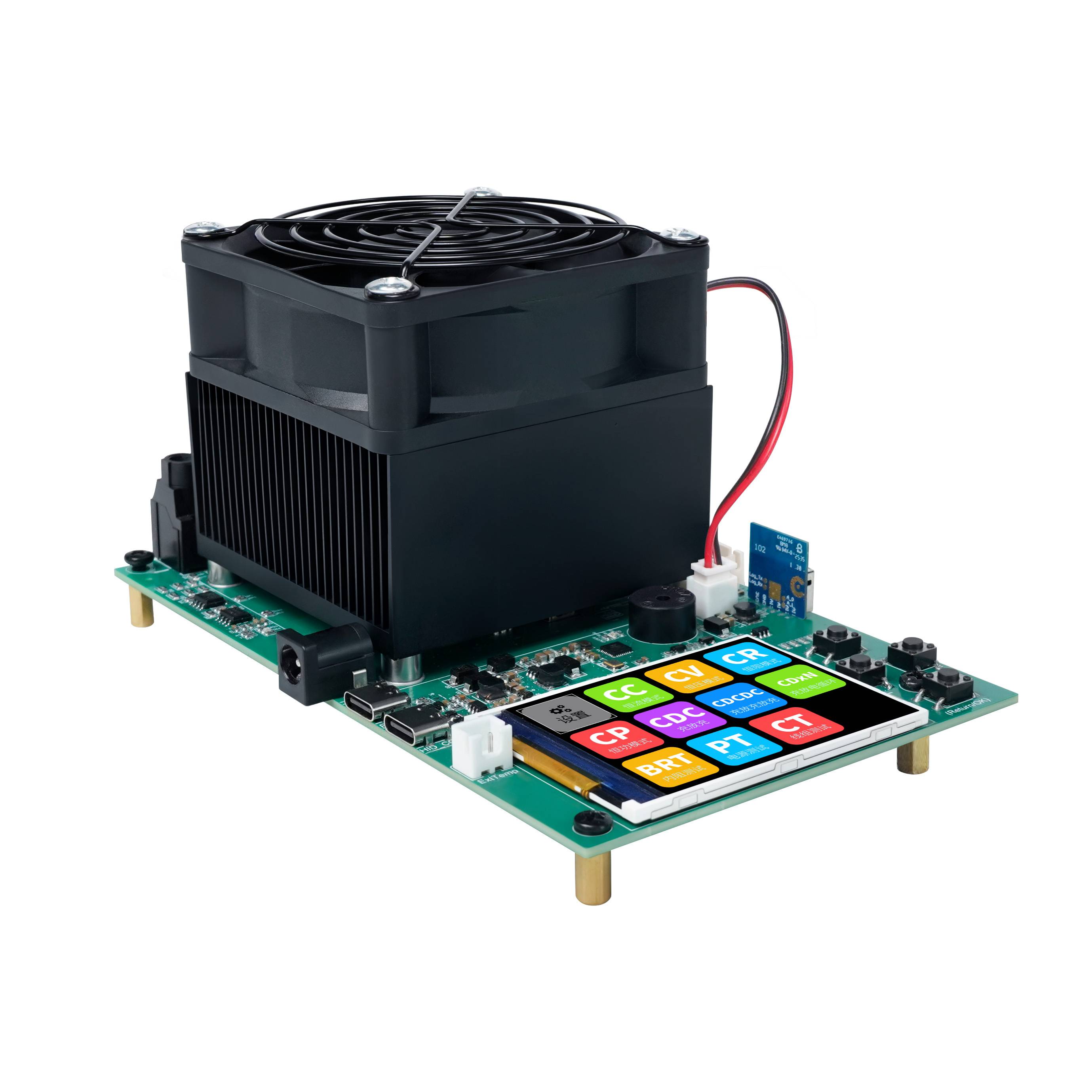

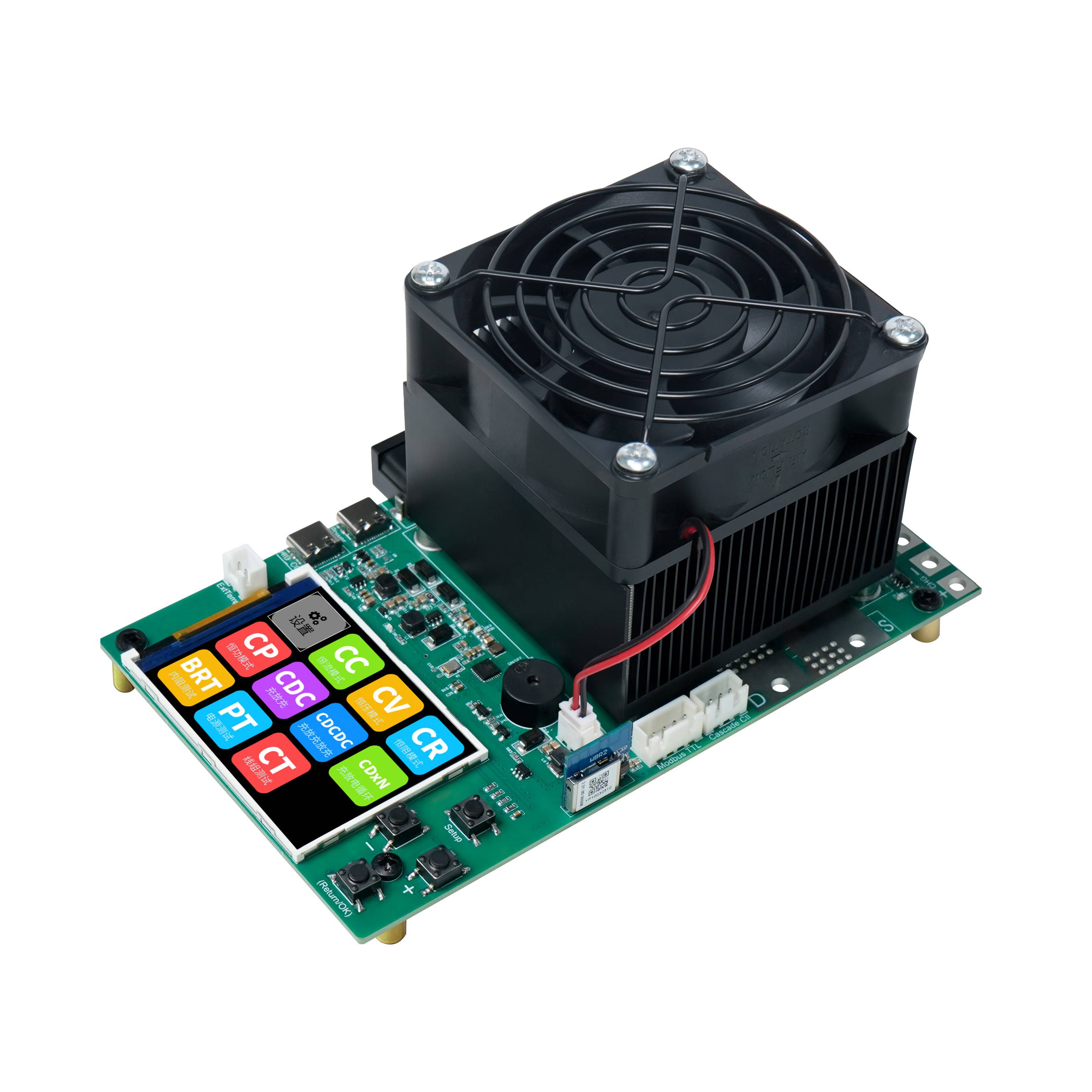

- 4-inch TFT color screen with Chinese/English UI switching
- Optional Bluetooth + Wi-Fi dual-mode with mobile APP remote control
- Dual firmware upgrade channels: HID and Wi-Fi
- Dual control interfaces: HID PC software and Modbus-TTL
- Expansion port reserved for 300 W cascade power module
